| Circuit Breaker | ||||||

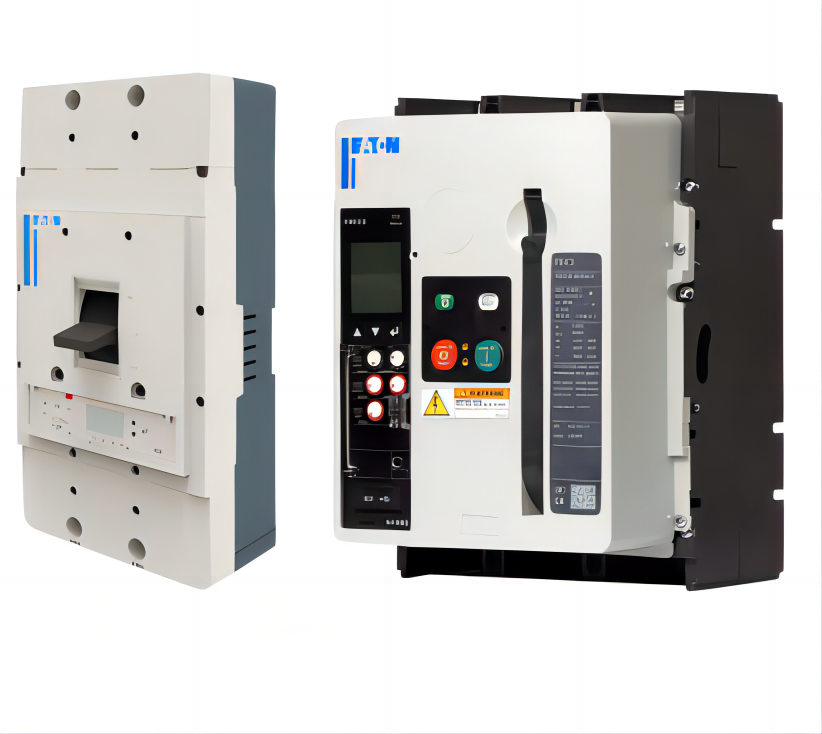

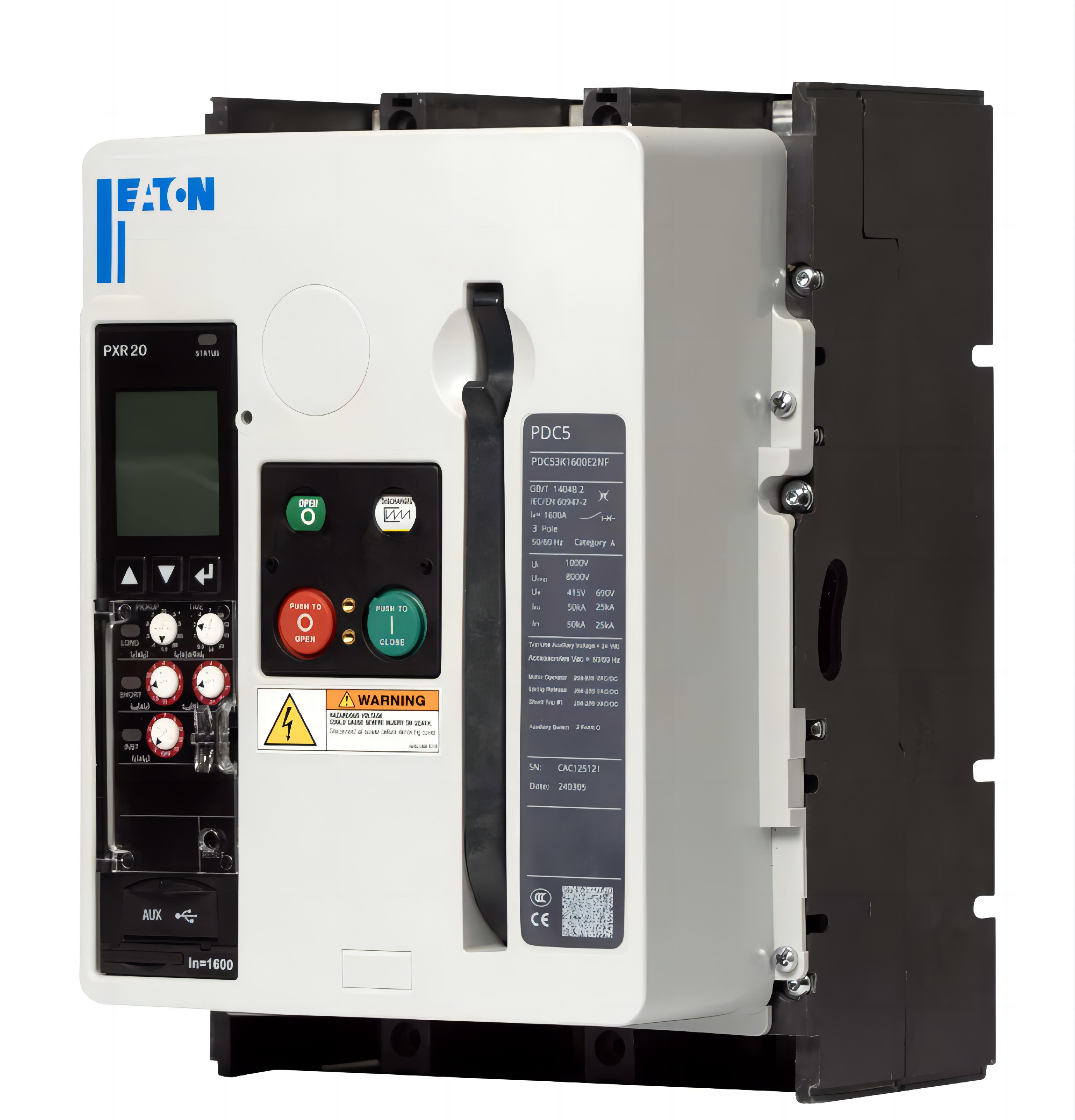

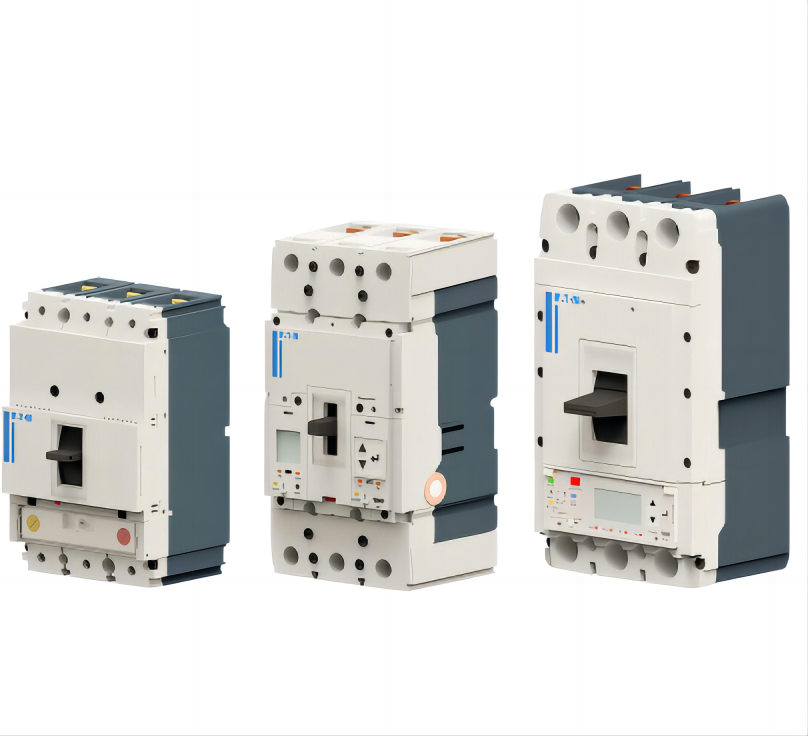

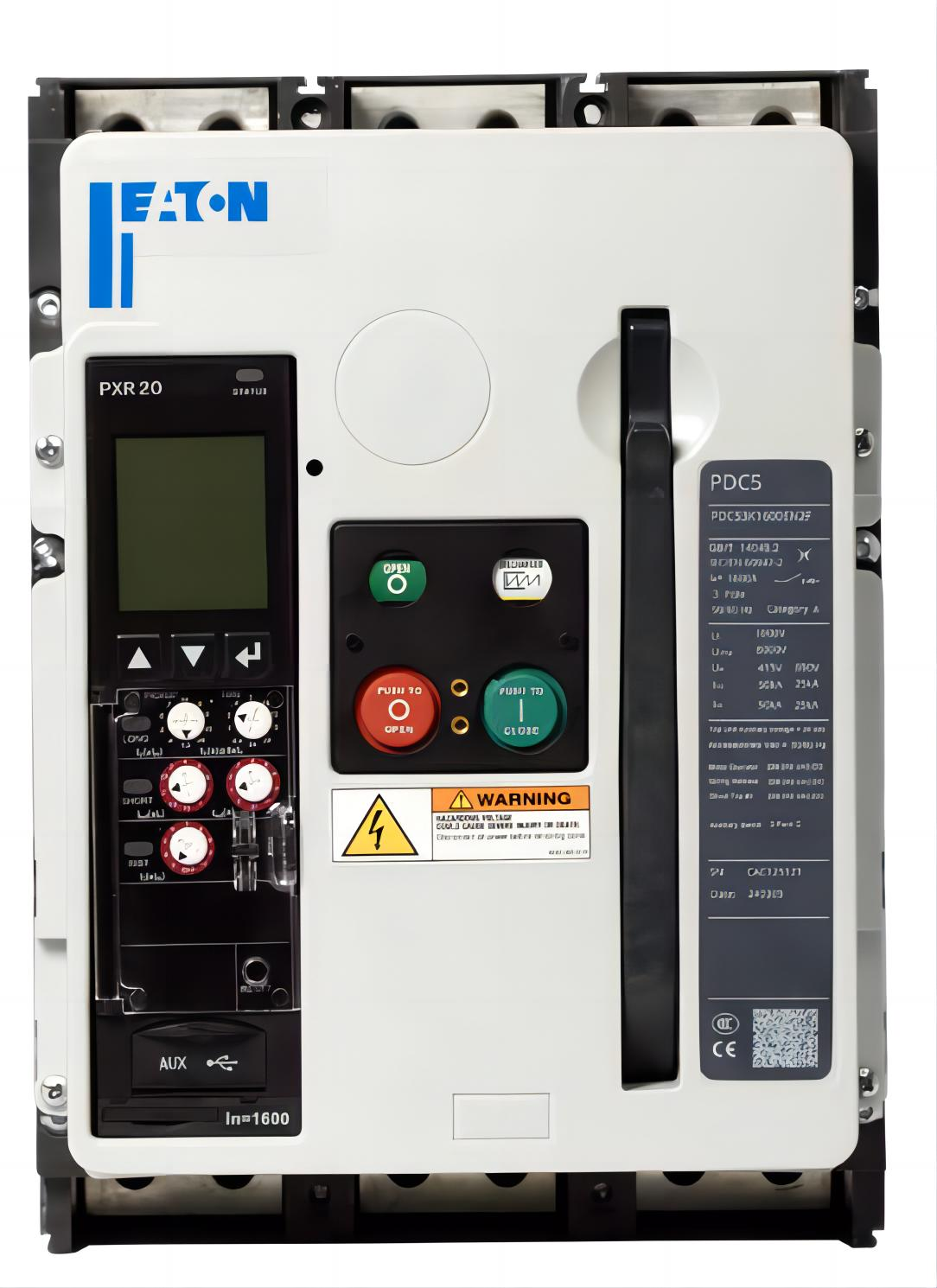

| PDC5 | ||||||
| Max. rated current Iu, A | 630 -1600 | |||||
| No. of poles | 3&4 | |||||
| Breaking capacity (kA rms) Vac 50-60 Hz | ||||||
| EC 60947-2 380-415 Vac 660-690 Vac | Icu | 50 85 100 | ||||
| Ics | 50 85 100 | |||||
| Icu | 25 | |||||
| Ics | 25 | |||||
| Icm rated short-circuit making capacity 220-240 Vac 125-250 Vdc | Icm | |||||
| Icm | ||||||
| Icm | ||||||
| Icm | 40 | |||||
| Icm | ||||||
| Rated short-time withstand capacity kA | Icw | 20 | ||||
| Rated current range A | 630 -1600 | |||||
| Utilization category | A | |||||
| Certificates | CE/CCC | |||||
| Max. rated current | 630 -1600 | |||||
| Rated insulation voltage to IEC 60947-2 | ||||||
| Main circuit V | 1000 | |||||
| Auxiliary circuit V | 600 | |||||
| Rated impulse withstand voltage Uimp | ||||||
| Main circuit (kV) | 8 | |||||
| Auxiliary circuit (kV) | 4 | |||||
| Rated operating voltage Ue IEC/CCC, Vac | 690 | |||||
| Storage temperature | -25°C to 85°C | |||||
| Operating temperature | -25°C to 70°C | |||||
| Product complies with IEC 60068 Shock Test | ||||||
| Mechanical life | 10000 without maintenance | |||||
| 20000 with maintenance | ||||||
| Electrical life to IEC/EN60947-4 Part B AC-1 @415V | 3000 | |||||
| Product dimensions (inches) H x W x D | ||||||
| 3P | 291*210*189 | |||||
| 4P | 291*280*189 | |||||
| Mounting method | Fixed type | |||||
| IP degree | IP20 | |||||
| Pollution level | III | |||||
| Over-voltage category | III | |||||
